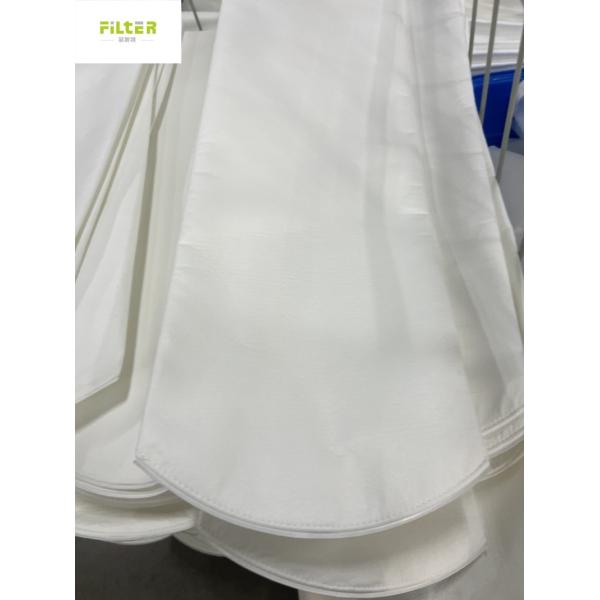

1 5 10 25 50 75 100 150um Polyester Liquid Filter Mesh Bag With Plastic Ring

Anhui Filter Environmental Technology Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

1 5 10 25 50 75 100 150um Polyester Liquid Filter Mesh Bag With Plastic Ring

  • 1
  • 2
  • 3
  • 4
  • 5

Brand Name : Filter

Model Number : liquid filter bag

Place of Origin : china

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000pcs per month

Delivery Time : 7 days

Packaging Details : carton

Usage : Liquid Filter

Type : Water liquid Filter Bag,oil filter bag

Material of bag : PTFE,Nylon,PP,PE

Application : water,coffee,Liquid filteration

Size : Custiomized

Product name : liquid filter bag

Micron rating : 5 10 25 50 75 100 150 200 300 400 500 micron

Sample : Avaliable

Top : String,SS304 RING or plasic ring

Body : Sewing thread or Hot-melt

Bottom : Sewing thread or Hot-melt

Trademark : Filter

Contact Now

1 5 10 25 50 75 100 150um Polyester Liquid Filter Mesh Bag with Plastic Ring:

PRODUCT DESCRIPTION:

Brand FILTER
Material PE / PP / NMO / PTFE
Size 1# 180*410mm/ 2# 180*810mm/ 3# 102*210mm/
4# 102*360mm/ 5# 152*560mm
Filtration accuracy 0.5-300 microns(µm)
Bag body types Stitched, Welded
Bag top types Plastic ring top, Metal ring top, Raw top, Drawstring top

Bag bottom types
"Arc" shape bottom, "V" shape bottom
1 5 10 25 50 75 100 150um Polyester Liquid Filter Mesh Bag With Plastic Ring

There are many standard sizes of liquid filter bags, different sizes and shapes of filter socks can be customized.

PRODUCT INFORMATION:

1 5 10 25 50 75 100 150um Polyester Liquid Filter Mesh Bag With Plastic Ring

Note: We can provide you with customized products!

The filter sock are available in many different sizes and shapes. The filter sock could be custom made. Normal used sizes of filter sock are.
Model Filter Bag Area (m²) Filter Bag Volume (Liter) Filter Bag Diameter (Inch/cm) Filter Bag Length (Inch/cm)

1#
0.19 7.9 7/18 16/41

2#
0.41 17.3 7/18 32/81

3#
0.05 1.4 4/10.2 8.25/21

4#
0.09 2.5 4/10.2 14/36

5#
0.22 8.1 6/15.2 22/56

PRECISION CONVERSION TABLE:


Micron (μm)
1 3 5 10 20 25 50 70 100 125 149
Mesh 15000 5000 2500 1250 625 550 300 200 140 120 100

Micron (μm)
200 250 300 350 500 590 710 840 1000 1200 1400

Mesh
70 60 50 45 35 30 25 20 18 16 14

FILTER DIAMETER REFERENCE TABLE:

Mesh 30 35 40 45 50 60 70 80 100 120 140 170 200 230 270 325 400 425 500 625 800 1250 2500 6250 12500
μm 595 500 420 354 297 250 210 177 149 125 105 88 74 63 53 44 37 33 25 20 15 10 5 2 1

THE CHEAMCIAL RESISTANCE OF LIQUID FILTER BAG:

The Chemical Resistance Of Liquid Filter Bag
Fiber Material
Polyester (PE)
Nylon (NMO)
Polypropylene (PP)
Abrasion Resistance
Very Good
Excellent
Very Good
Weakly Acid
Very Good
General
Excellent
Strongly Acid
Good
Poor
Excellent
Weakly Alkali
Good
Excellent
Excellent
Strongly Alkali
Poor
Excellent
Excellent
Solvent
Good
Good
General

PRODUCT DETAILS:

1 5 10 25 50 75 100 150um Polyester Liquid Filter Mesh Bag With Plastic Ring


1. Five-thread sewing hemming technology High pressure resistance.
The bag mouth is tightly stitched without gaps.
The needle thread is tight and there is no needle eye to prevent leakage.
This product is produced using a high-speed industrial sewing machine and uses silicone-free oil to cool down.

2. Hot melt welding Sealed without leakage
Hot-melt welding, seamless combination process, strengthen the dirt collection effect.
Use digital co-located multi-point welding equipment to ensure that each point of welding is firm.
Without any special bleaching and dyeing treatment, it fully complies with environmental standards.

BOTTOM TYPE:

1 5 10 25 50 75 100 150um Polyester Liquid Filter Mesh Bag With Plastic Ring
Welded arc Stitched arc Welded V


PRODUCT REAL SHOT:
1 5 10 25 50 75 100 150um Polyester Liquid Filter Mesh Bag With Plastic Ring1 5 10 25 50 75 100 150um Polyester Liquid Filter Mesh Bag With Plastic Ring1 5 10 25 50 75 100 150um Polyester Liquid Filter Mesh Bag With Plastic RingPRODUCT PROCESS:

1 5 10 25 50 75 100 150um Polyester Liquid Filter Mesh Bag With Plastic Ring

APPLICATION:

1 5 10 25 50 75 100 150um Polyester Liquid Filter Mesh Bag With Plastic Ring

CERTIFICATE:

1 5 10 25 50 75 100 150um Polyester Liquid Filter Mesh Bag With Plastic Ring
